Mapping an existing model to Core Vocabularies

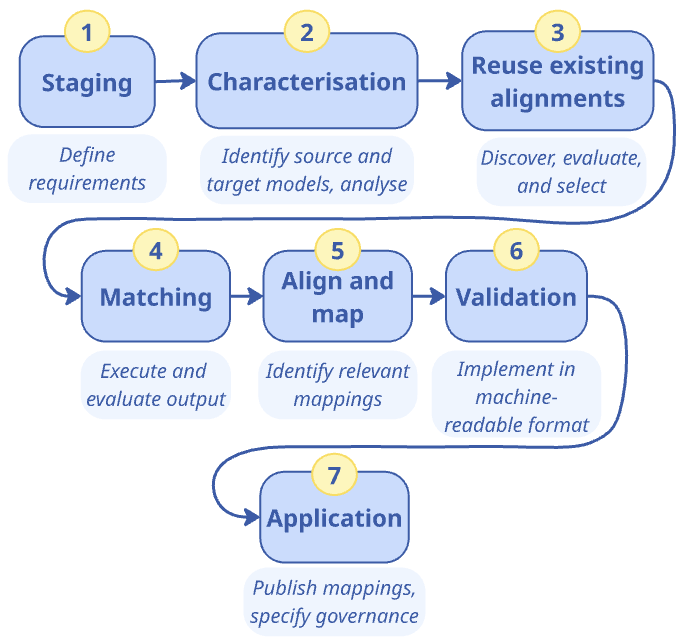

This initial phase involves a comprehensive understanding of the project’s scope, identifying the specific goals of the mapping exercise, and the key requirements it must fulfil. Stakeholders collaborate to articulate the purpose of the alignment between the models, setting clear objectives that will guide the process. Defining these requirements upfront ensures that subsequent steps are aligned with the model matching process’ overarching goals, stakeholder expectations, and fitting the use cases.

Inputs: Stakeholder knowledge, project goals, available resources, domain expertise.
Outputs: Mapping project specification document comprising a well-defined scope and comprehensive list of requirements.

In this phase, a thorough analysis of both source and target ontologies is conducted to ascertain their structures, vocabularies, and the semantics they encapsulate. This involves an in-depth examination of the conceptual frameworks, representation languages, and the models. Understanding the models’ respective nuances is critical for identifying potential challenges and opportunities in the matching process to determine whether the process will be feasible and meaningful.

The following list of features is indicative, but not exhaustive, in this analysis: specifications’ documentation, representation language and representation formats, deprecation mechanism, inheritance policy (single inheritance only or multiple inheritance are also allowed), natural language(s) used, label specification, label conventions, definition specification, definition conventions, and version management and release cycles.

These features can have consequences for the mapping task. Let us illustrate three of them. For instance, the files being available in the same format, such as both in JSON-LD, simplifies declaring and implementing the mappings technically, whereas if they are in a different format, one will have to be converted into the other format, if it is possible to do so without loss of meaning.
The natural language of the ontology or vocabulary refers to the rendering of the entities’ names or labels, which may be one language, multiple languages equally, one language mainly and others with partial coverage. For instance, the source ontology may have French and English labels for most elements that are identified by an identifier like XYZ:0012345, but either lapsed in translating a few terms or the developers could not find a suitable equivalent in one of the two, such as Fleuve and Riviere in French for which only River exists in English, and the target ontology could have element names in English only rather than identifiers with human-readable labels. If the source and target are in a different natural language, the task is not simply one of mapping entities, but also translating names, labels, and annotations of entities.
An infrequently updated version can indicate either that it is a stable release or that it is not maintained, and the comparison thus depends on a broader setting that may be worthwhile to ascertain. Conversely, a frequently updated version is less stable, and it may even be the case that by the time a matching process is completed with one version, a new version has been released that might require an update to the mapping.

Depending on the feature, one will have to inspect either the computer-processable file or the dedicated documentation that describes it, or both.

Inputs: Source and target ontologies, requirements, and any business or domain constraints.
Outputs: Analysis reports comprising a comparative characterisation table, identified difficulties, risks and amenability assessments, selected source and target for mapping.

In the ontology matching lifecycle, the reuse phase is important in that it can facilitate the integration of already existing mappings into the project’s workflow, thereby saving work and positioning one’s ontology better within the existing ecosystem. Following the initial characterisation, this phase entails the discovery and evaluation of available mappings against the project’s defined requirements. These requirements are instrumental in appraising whether an existing alignment can be directly adopted, requires modifications for reuse, or if a new alignment should be declared.

Ontology alignments are often expressed in Alignment Format (AF) [af] or Expressive and Declarative Ontology Alignment Language (EDOAL) [edoal, al-api].

The outcome of this activity can be either of:

This structured approach to reuse optimises resource utilisation, promotes efficiency, and tailors the mapping process to the project’s unique objectives.

Inputs: Repository of existing alignments for the source and target ontologies, evaluation criteria based on requirements.
Outputs: Assessment report on existing alignments, decisions on reuse, adaptation, or creation of a new alignment.

This section summarises automatic and semi-automatic approaches to finding the alignment candidates. In case of small vocabularies and ontologies, a fully manual effort is likely more efficient.

Utilising both automated tools and manual expertise, this phase focuses on identifying potential correspondences between entities in the source and target models. The matching process may employ various methodologies, including semantic similarity measures, pattern recognition, or lexical analysis, to propose candidate alignments. These candidates are then evaluated for their accuracy, relevance, and completeness, ensuring they meet the requirements and are logically sound. This phase consists of three main activities: planning, execution, and evaluation.

In the planning activity, the approach to ontology matching is strategised, which encompasses selecting appropriate methods with their algorithms and tools, fine-tuning parameters, determining thresholds for similarity and identity functions, and setting evaluative criteria. These preparations are informed by a thorough understanding of the project’s requirements and the outcomes of previous reuse evaluations.

Numerous well-established ontology matching algorithms have been extensively reviewed in the literature (for a review and in-depth analysis, see [om-lr, om]). The main categories of ontology matching techniques are listed below in the order of their relevance to this handbook:

Next, the execution activity implements the chosen matchers. Automated or semi-automated tools are deployed to carry out the matching process, resulting in a list of candidate correspondences. This list typically includes suggested links between elements of the source and target ontologies, each with an associated confidence level computed by the algorithms [edoal]. A language for expressing such correspondences is commonly used to declare these potential alignments.

Finally, in the evaluation activity, the alignments found are rigorously assessed on their suitability. The evaluation measures the alignments against the project’s specific needs, scrutinising their accuracy, relevance, and alignment with the predefined requirements, so that only the most suitable alignments are carried forward for the creation of a mapping, thereby upholding the integrity and logical soundness of the matching process.

Tools: Tools such as SILK [silk], LIMES [limes], and LogMap [logmap] may be used in this phase.
Inputs: Matcher configurations, additional resources (if any), correspondences from previous matching iterations (if any).
Outputs: Generated alignments, evaluation reports.

Following the identification of alignments, this step involves the formal creation of the alignment and the rendering (generation) of specific mappings between the source and target models. This phase involves preparing, creating, and rendering activities that establish coherent actionable mappings between ontology entities. The resulting alignment is then documented, detailing the rationale, methods used, and any assumptions made during the mapping process.

The alignment process may include engaging communication with third parties to validate the alignment. Furthermore, the process has technical implications that should be evaluated upfront, such as the machine interpretation and execution of the mapping.

Preparation involves stakeholder involvement to collectively go systematically through the list of alignments (candidate mappings), considering not only the relevance of the alignments, but also the type of relationship between the elements, being typically either equivalence or subsumption.
The type of asset—an ontology, controlled list, or data shape—dictates the nature of the relationship that can be rendered from the alignment. The types of alignment are visually represented and illustrated in the figure below and summarised and structured in the table afterwards. They include alignment elements for OWL elements concerning semantic artefacts and for SKOS, which can be used for annotations and weakly semantic knowledge organisation systems.

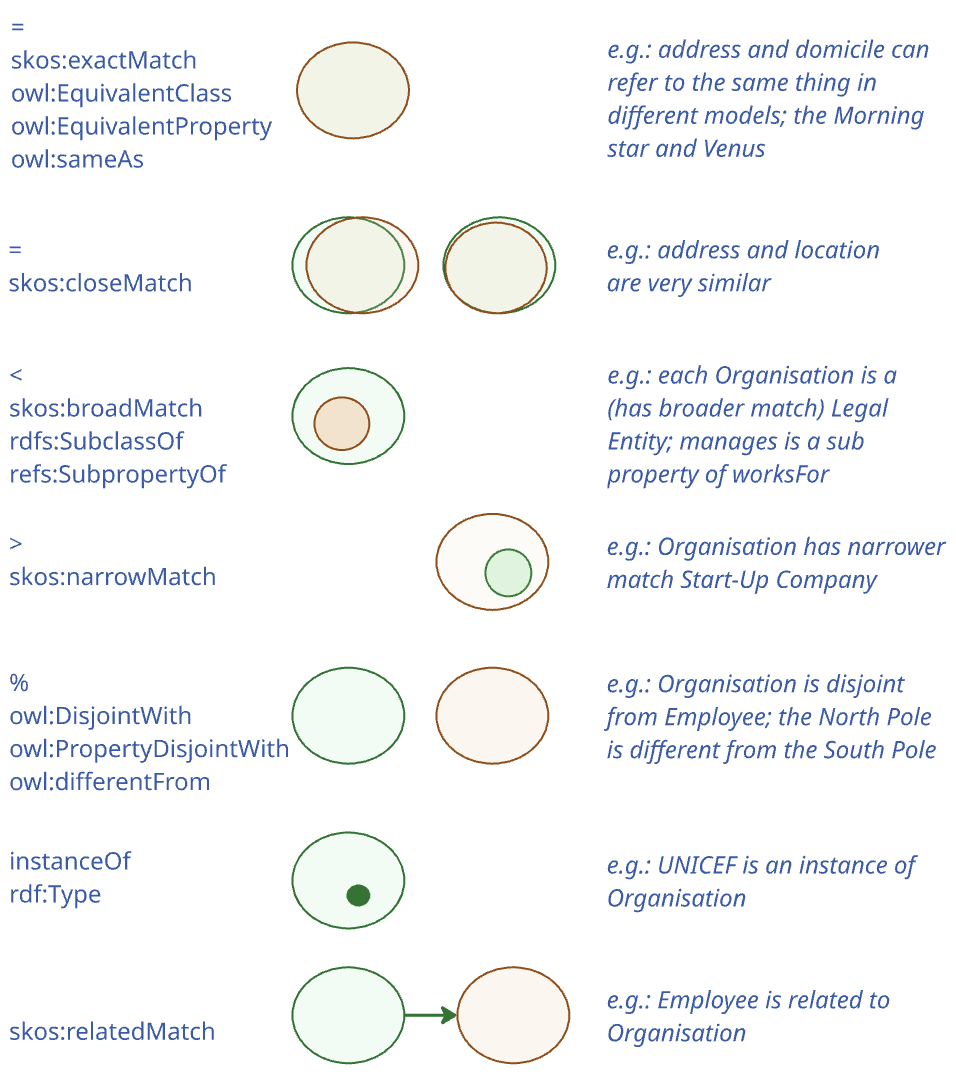

The table is indicative of the variety of semantic connections that can be realised, including equivalence, subclass, disjointness, and type instantiation. This nuanced preparation is key to ensuring that the final alignment and mapping reflect the project’s semantic requirements and scope accurately.

The Creation step is the execution of the mapping, entailing the selection of the relation, and assertion of the mapping. This activity involves human intervention and the selection is conducted manually according to the project’s objectives and semantic appropriateness of the candidate mapping.

Rendering translates the mapping in a machine-readable format so that it can be interpreted and executed by software agents. Typically, this is a straight-forward export of the alignment statements from the editing tool or the materialisation of the mapping in a triple store, using a common format, such as Alignment Format [af], EDOAL [edoal], Simple Standard for Sharing Ontological Mapping (SSSOM) [sssom], and the Semantic Mapping Vocabulary (SEMAPV) [semapv] for the mapping justification values. Multiple renderings may be created from the same alignment, accommodating the need for various formalisms.

Tools: Tools such as VocBench3 [vocbench] can be used in this phase, or generic office tools, such as MS Excel, Google Sheets spreadsheets, or a LibreOffice spreadsheet.
Inputs: Evaluated correspondences (the alignments), stakeholders' amendment plans, requirements for the formalism of the mapping so that the mapping assertions integrate with the modelling language used.
Outputs: Created mapping, stored versions in an alignment repository (e.g., [sem-map]).

The final phase focuses on operationalising the created mappings, ensuring it is accessible and usable by applications that require semantic interoperability between the mapped models. This involves carrying out the following tasks:

Regarding the second task, governance involves the creation of maintenance protocols to preserve the alignment’s relevance over time. This includes procedures for regular updates in response to changes in ontology structures or evolving requirements, as well as governance mechanisms to oversee these adaptations. As the mapping is applied, new insights may emerge, prompting discussions within the stakeholder community about potential refinements or the development of a new iteration of the mapping. Due to the dynamic nature of data sources, the application phase serves both as an endpoint, as well as a foundation for continuous improvement. Some processes may be automated to enhance efficiency, such as the monitoring of ontologies for changes that would necessitate mapping updates.

Inputs: Finalised mappings, application context, feedback mechanisms.
Outputs: Applied mappings in use, insights from application, triggers for potential updates, governance actions for lifecycle management.

In this phase, the aim is to understand what needs to be mapped and why.
For this tutorial, we aim to map Schema.org to the Core Business Vocabulary (CBV), enabling data interoperability.

Steps

Output

A short project specification that defines the purpose of the mapping, its scope, and expected outcomes. For this tutorial, the output is:

Procedure for CBV and Schema.org

The purpose, scope, and goals are determined by the stakeholders, including domain experts and knowledge engineers. First, the domain experts’ input is needed to demarcate the scope especially, indicating what the (sub-)topic of interest is, ideally augmented with key terms. For CBV and Schema.org, these may include terms such as: legal:LegalEntity versus schema:Organization. It may also need to take into account ‘externalities’, such as regulatory compliance that may dictate the use of one version of a schema over another for some business reason. For the current exercise, there are no regulatory compliance requirements in place. Therefore, the latest official releases of both vocabularies will be used (Schema.org version 29.1 and CBV version 2.2.0). Next, clear mapping goals should be established. For this exercise, the primary goal is to identify direct relationships between the two vocabularies. These relationships will then be expressed in a machine-readable format, enabling seamless data transformation between the CBV and Schema.org.

The aim of this phase is to analyse the structure, vocabulary, and semantics of the Core Business Vocabulary that we shall take as Target ontology and Schema.org that will be set as Source ontology. The key steps and outputs are as follows.

Steps

Output

Procedure for CBV and Schema.org

First, list the features on which to compare the source and the target, which concerns principally the ‘meta’ information, that is information about the artefacts themselves, rather than their subject domain content. This includes typical features such as the artefacts’ serialisation format(s), terms’ naming conventions, and version management. These features can either hinder or support the mapping task.

Let’s consider three of them and consider how they apply to our case.:
1) Are the files available in the same format? This is indeed the case for CBV and Schema.org, and even leaves the choice for using their RDF or JSON-LD format.
2) The natural language of CBV and Schema.org, that is, the rendering of the entities’ names and labels, are both in one language, and so translating entities’ names is not needed
3) Regarding frequency of version updates, there is a notable difference. CBV is relatively stable with two main releases, whereas Schema.org has frequent releases and it is currently in its 29th main release cycle.
The selected features are presented in a table below, where for each feature the corresponding values for CBV and Schema.org are provided for comparison. For the CBV and Schema.org metadata comparison, we had to consult the documentation, the developer release pages, and directly inspect the available files.

The aim of this phase is to avoid doing duplicate work by checking if any existing mappings between CBV and Schema.org are available for reuse, or if there are any alignments that can be adapted for this project.

Steps

Output

Procedure for CBV and Schema.org

There are three distinct pathways, namely: direct use, adaptive reuse, and creating a new alignment. Let’s look at each in turn. For the CBV and Schema.org, we first look for pre-existing alignments of related vocabularies. They may be declared in the files themselves, but we also can search the SEMIC GitHub repository for other files that may have relevant mappings already.

In the SEMIC repository, there are several vocabularies that have alignments to Schema.org already, which may be reusable. They are listed in the following table, along with the location and the latest version available at the the day of the exercise (recall the Source and Target Characterisation above).

We then look at the intersection of CBV concepts and relationships and those in Schema.org. If there are shared or closely related terms, we check whether a mapping already exists between those specific elements. This takes us to the Evaluate reusability step: and if it is an agreeable mapping between the two entities, we can reuse that mapping. Alternatively, it may be the case of adaptive reuse, which involves refinements to better suit the mapping objectives.

At this step, we will perform the actual mapping, which we shall bootstrap by producing candidate mappings between classes and between properties, typically automatically, semi-automatically, or manually, and then assess the results.

Steps

Output

Procedure for CBV and Schema.org

In this tutorial, we use LIMES [limes] to automate link discovery in the mapping process between the CBV and Schema.org. While other tools could also be used, LIMES was selected for its simplicity and efficiency in performing lexical similarity-based alignments.

Set Up Data Sources

Preparing the data sources depends on the files and the alignment tool chosen. To support this, the table of features compiled in Phase 2 is useful. It indicates whether alignment should be run on class names or labels, specifies the file format, and notes any algorithmic peculiarities, such as a similarity threshold. For our use case, we begin by configuring the SPARQL endpoints, which allow us to extract the relevant classes and properties for comparison. We focus on aligning entities by their rdfs:label whose value is the name or description of the entity, which is the most straightforward way to identify potential mappings.

Apply Matching Algorithm

LIMES uses a similarity metric to compare the rdfs:label values of entities from both files. This metric generates similarity scores based on the string matching of the labels and, optionally, their descriptions.

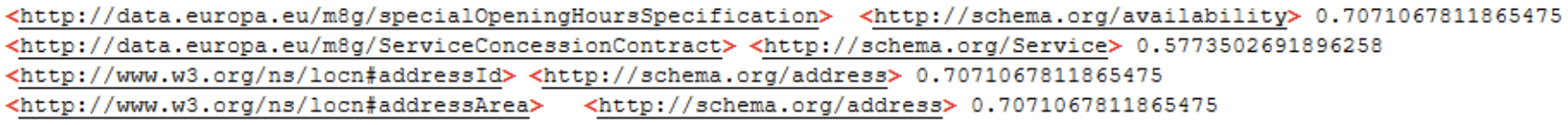

Analyse Results

Tools such as LIMES and Silk do not determine the semantic nature of the match (e.g., equivalence vs. subclass). They only suggest candidate pairs based on similarity metrics. It is up to the human expert to choose the appropriate relation, using knowledge of the domain and the ontology documentation. Once the matching process is complete, we inspect the results. In the case of the CBV and Schema.org alignment, no matches were found with LIMES, which means that no significant similarities were identified between entities based on the chosen similarity metric. Consequently, we need to either try with another alignment tool or manually review and align the entities. While we opt for the latter, let us first illustrate how the output would look if there had been potential matches. The LIMES output includes three key columns:

Manual Alignment Process

Even though the automated tool did not produce any alignments, we can use our domain knowledge to suggest potential mappings based on the descriptions and attributes of the entities. For example, CBV’s LegalEntity (that is an org:Organization) maps to Schema.org’s Organization based on their similar roles in representing business-related concepts, and likewise for CBV’s Address (imported from Core Location Vocabulary) with Schema.org PostalAddress. These kinds of alignments are made by examining the entity definitions and considering the context of their use in each ontology.

After the alignments (i.e., candidate mappings) have been generated—either by automated tools or through manual assessment—each proposed mapping must be validated to assess if the candidate links represent semantically meaningful relationships between classes or properties from the two ontologies.

Steps

Output

Procedure for CBV and Schema.org

Review Proposed Alignments

Each candidate correspondence is checked for correctness and relevance. For CBV and Schema.org, we use a manual inspection by ontology engineers first, which includes cross-referencing documentation or definitions. CBV’s LegalEntity is “A self-employed person, company, or organisation that has legal rights and obligations” and Schema.org’s Organization is “An organization such as a school, NGO, corporation, club, etc.”. For Address, the descriptions are as follows: “A spatial object that in a human-readable way identifies a fixed location” with a usage note indicating it to be understood as a postal address, and “The mailing address”, respectively.

Decide the Appropriate Semantic Relation

For each validated candidate pair, determine the type of semantic relation.

For our running example, CBV’s LegalEntity is almost the same as Schema.org’s Organization, but the latter does not have the “legal rights” constraint, and therefore, the appropriate semantic relation is that of subsumption. For the respective addresses, while CBV’s imported Address’ definition is broader than PostalAddress, and therefore suggesting a subsumption alignment as well, taking into account CBV’s usage note, it can be an equivalence alignment.

Formalise the Alignment

Once the relation is chosen, each alignment is encoded as a machine-readable RDF triple, typically in RDF/XML or Turtle format, suitable for integration and reuse.
The result is a validated alignment file, where each mapping is represented based on the Alignment Format or an extension thereof, such as EDOAL, as an align:Cell with:

Example output of adding an alignment between legal:LegalEntity and schema:Organization:

where it can be seen that the “<” relation corresponds to rdfs:subClassOf and the mapping justification is MappingReview, which is as approved as it can be in SEMAPV terminology.
Other alignment examples and a complete file including prefixes can be viewed here.

After alignments have been validated, the final step is to apply them in practice. This involves both technical integration and the establishment of a governance framework to ensure the mappings remain up to date and useful over time.

Steps

Output

Procedure for CBV and Schema.org

The mapping file (in RDF/Turtle format) resulting from our mapping exercise is published on the SEMIC GitHub repository. This allows for integration of the mapping output into validation tools used by Member States and other implementers to check CBV-compliant data against Schema.org requirements.

For testing, one could attempt to load the files in an editor that can read in the file of the chosen format, being Turtle for CBV, the Turtle version of Schema.org, and the alignment file, or run it through a syntax validator to verify that all is in order for deployment.

The governance structure for the ‘model mapped to CV’ is, in principle, on the side of the model. Practically, for this case with CBV and its mapping to Schema.org, both have an interest in governing it. From the CBV side, SEMIC is responsible for regularly monitoring updates in CBV vocabulary and Schema.org (e.g., new classes, renamed terms, deprecated elements) and applying updates where needed, ensuring that logged issues are addressed, and verifying that all links and namespaces remain functional. SEMIC is also expected to consider updates to CBV driven by evolving requirements (e.g., to make CBV multilingual) and plan any necessary changes accordingly, including assessing their potential impact on the mappings with Schema.org.

Real Example Using SPARQL Anything

To demonstrate the practical value of the mapping between CBV and Schema.org, we use SPARQL Anything to query instance data alongside the alignment file.

*Scenario: * We assume

SPARQL Query

What This Query Does

It checks for instances of legal:LegalEntity in the data file, and if the alignment file contains a mapping for it, it infers the equivalent or related Schema.org class (schema:Organization).

Output

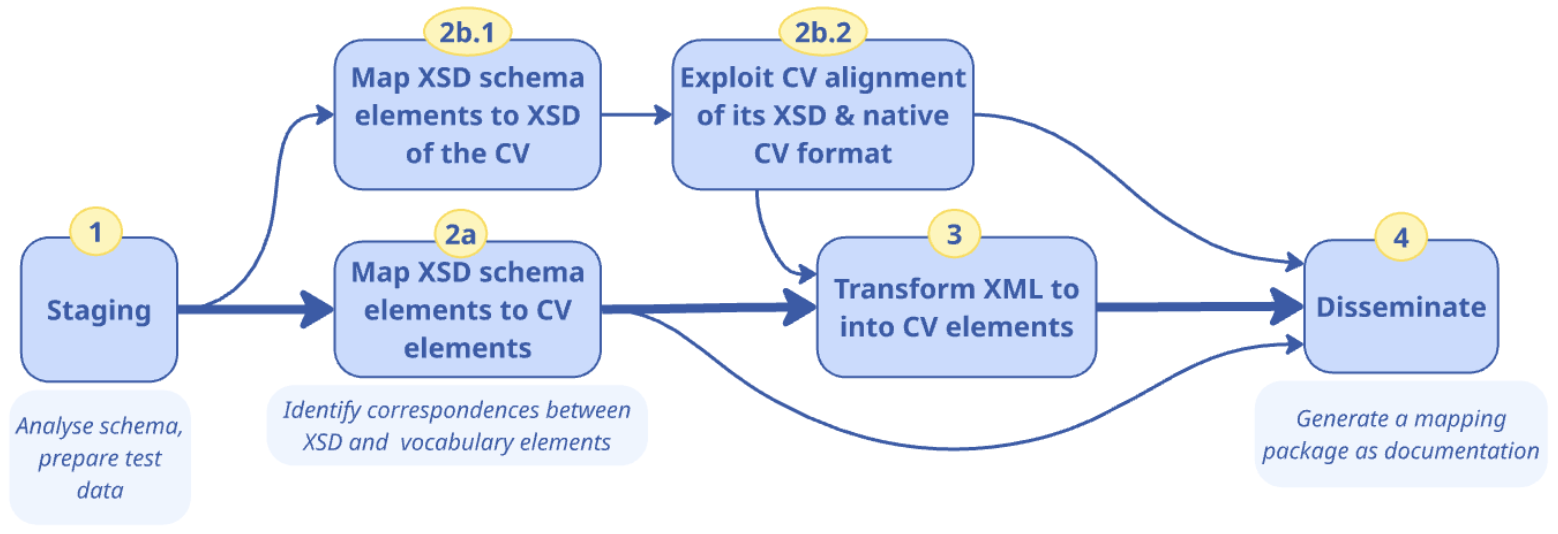

The first task is to examine the XSD schema to understand what elements it contains and how the hierarchical structuring of content may affect the meaning of the elements. This is important both for mapping and for selecting appropriate test data.

It may be that the XSD is outdated or partial with respect to the XML files that contain the data. Therefore, if during this staging process, it appears that Phase 3 will have to be included, then it is important to also construct a representative test dataset. This dataset should consist of a carefully selected set of XML files that cover the important scenarios and use cases encountered in the production data. It should be sufficiently comprehensive to facilitate rapid transformation cycles, enabling effective testing iterations in the validation. Also, it must align with the source schema for which it is used as test data.

Conceptual Mapping in semantic data integration–determining what elements from the source should correspond to those in the target–can be established at two distinct levels: the vocabulary level and the application profile level. These levels differ primarily in their complexity and specificity regarding the data context they address. A Vocabulary mapping is established as the principal task: the XSD schema’s elements need to align to CV elements, focussing on terminological alignments.

For the XSD file, they are the elements within the tags <xs:element ref=”elementLabel”> where the “elementLabel” first has to be contextually interpreted if no definition is given in the XSD file, and then mapped to a concept from the chosen CV. For instance, a <xs:element ref=”address”> nested within the concept <xs:element ref=”Person”> has a different meaning from “address” nested within the concept <xs:element ref=”Website”>. This thus also requires careful management of the mappings, where the whole XPath is documented, rather than only the name of the element, because the whole path is needed for disambiguation.

Option 2-i. Map XSD to a CV’s main format

Mapping may be with the intent to transform, or simply align for interoperability. More tools have been proposed for the former, and more so explicitly to an OWL flavour (RDFS/OWL full or an OWL 2 in one of its serialisations).

A quick overview of translations for the XML Schema constructs and OWL constructs [xsd-owl] is included in the following table.

An example of each XSD element/type to a class or property would, as a minimum, be recorded in a table format for documentation. For instance:

This approach results in a basic 1:1 direct alignment, which lacks contextual depth and specificity. Another approach would be to embed semantic annotations into XSD schemas using standards such as Semantic Annotations for WSDL and XML Schema (SAWSDL) [sawsdl] using the sawsdl:modelReference attribute to capture this mapping. Such an approach is appropriate in the context of WSDL services.

Option 2-ii. Map a XSD to the XSD of a CV

In a small number of cases, a CV also has an XSD schema derived from the CV’s main representation format. Then one could create an XSD-to-XSD mapping, i.e., from one’s own source XSD to the CV’s XSD target. Subsequently, it should be possible to use the CV’s existing alignment to obtain a source-XSD to target-CV alignment, by transitivity of the alignments, under the assumption that the alignment between the XSD of the CV and the CV is a 1:1 mapping. While this option is possible for the CBV already, it is currently not a main route for alignment to a CV and therefore not elaborated on further here.

After completing either Phase 2-i or 2-ii, one may proceed to Phase 3, if applicable, else jump to Phase 4.

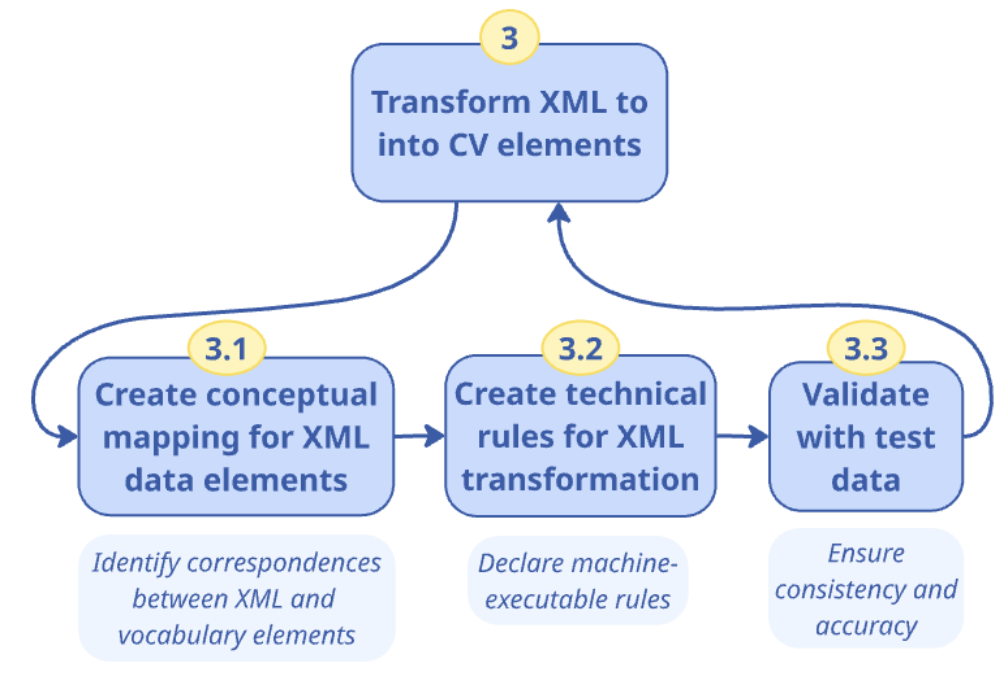

Drilling down into Phase 3 of the overall procedure, we identify three steps, as shown in the figure below.

Transforming the XML data to the Core Vocabulary by means of mappings consists of:

The conceptual mapping helps business and domain experts to validate the correspondences. The technical mapping ensures an algorithm can transform the data automatically into a format that is compatible with the CV. The validation contributes to consistency and accuracy of the mappings and thereby the data transformation.

Phase 3.1 Conceptual Mapping development

Besides the XSD to CV mappings, the XML elements can also be mapped in a Vocabulary mapping. For the XML files, an XML element or attribute is then directly mapped to an ontology class or property. For example, an XML element <PostalAddress> could be mapped to the locn:Address class in a CV, or an element <surname> could be mapped to a property foaf:familyName in the FOAF ontology. Such mappings can be established and written in a spreadsheet or mapping-specific software.

Alternatively, one can create an Application Profile mapping, which utilises XPath to guide access to data in XML tree structures, enabling extraction and contextualization of data before mapping it to an ontology fragment that is usually expressed as a SPARQL Property Path (or simply: a Property Path). This Property Path facilitates the description of instantiation patterns specific to the Application Profile.

The tables below show two examples of mapping the organisation’s address, city and postal code: where the data is extracted from in the source, and how it can be mapped to targeted ontology, such as locn:postName, and locn:postCode in the vocabulary. To ensure that this address is linked to an organisation instance, and not, say, a person, the mapping is anchored in an instance represented by the variable ?this of an owl:Organisation. Optionally, a class path can also be provided to explicitly state the class sequence, which otherwise can be deduced from the Application Profile definition.

Inputs: XSD schemas, Ontologies, SHACL Data Shapes, Source and Target Documentation, Sample XML data. Both vocabulary and profile mappings are typically crafted and validated by domain experts, data-savvy business stakeholders, and in collaboration with semantic engineers and CV experts.
Outputs: Conceptual Mapping documented in, e.g., a spreadsheet.

Phase 3.2: Technical Mapping development

The technical mapping serves as the bridge between conceptual design and practical, machine-executable implementation. This step takes as input the conceptual mapping and establishes correspondences between XPath expressions and ontology fragments.

Several technology options are available [ml-lr] to represent these mappings technically, such as XSLT [xslt], RML [rml] (extending R2RML), and [SPARQLAnything]. RML allows for the representation of mappings from heterogeneous data formats, such as XML, JSON, relational databases, and CSV into RDF. The mapping rules can be expressed in Turtle RML or the YARRRML [yarrrml] dialect, a user-friendly text-based format based on YAML, making the mappings accessible to both machines and humans. RML is well-supported by robust implementations such as RMLMapper [rml-map] and RMLStreamer [rml-stream], which provide robust platforms for executing these mappings. RMLMapper is adept at handling batch processing of data and RMLStreamer suits streaming data scenarios, where data needs to be processed in real-time.

Provided one has mastered RML along with XML technologies such as XSD, XPath, and XQuery to implement the mappings effectively [rml-gen], the development of the technical mapping rules is straightforward thanks to the conceptual mapping output from Phase 3.1. RML mapping statements are created for each class of the target ontology coupled with the property-object mapping statements specific to that class.

An additional step involves deciding on a URI creation policy and designing a uniform scheme for use in the generated data, ensuring consistency and coherence in the data output.

A viable alternative to RML is XSLT technology, which offers a powerful, but low-level method for defining technical mappings. While this approach allows for high expressiveness and complex transformations, it also increases the potential for errors due to its intricate syntax and operational complexity. This technology excels in scenarios requiring detailed manipulation and parameterisation of XML documents, surpassing the capabilities of RML in terms of flexibility and depth of transformation rules that can be implemented. However, the detailed control it affords means that developers must have a high level of expertise in semantic technologies and exercise caution and precision to avoid common pitfalls associated with its use.

A pertinent example of XSLT’s application is the tool for transforming ISO-19139 metadata to the DCAT-AP geospatial profile GeoDCAT-AP [geo-dcat-ap] in the INSPIRE framework and the EU ISA Programme. This XSLT script is configurable to accommodate transformation with various operational parameters such as the selection between core or extended GeoDCAT-AP profiles and specific spatial reference systems for geometry encoding, showcasing its utility in precise and tailored data manipulation tasks.

Inputs: Conceptual Mapping spreadsheet.
Outputs: Technical Mapping source code.

Phase 3.3: Validation of the RDF output

Given the output of Phase 3.2 and the test data preparation from Phase 1, first transform the sample XML data into RDF, which will be used for validation testing.
Two primary methods of validation should be employed to test the integrity and accuracy of the data transformation: SPARQL-based validation and SHACL-based validation, each serving distinct but complementary functions.

The SPARQL-based validation method utilises SPARQL ASK queries that are derived from the SPARQL Property Path expressions and complementary Class paths from Phase 3.1. The ASK queries test specific conditions or patterns in the RDF graph corresponding to each conceptual mapping rule. By executing these queries, one aims to confirm that certain data elements and relationships have been correctly instantiated according to the mapping rules. The ASK queries return a Boolean value indicating whether the RDF graph meets the conditions specified in the query, thus providing a straightforward mechanism for validation. This confirms that the conceptual mapping is implemented correctly in a technical mapping rule.

For example, for the mapping rules above, the following assertions can be derived:

The SHACL-based validation method provides a comprehensive approach for validating RDF data, where data shapes are defined according to the constraints and structures expected in the RDF output, as specified by the mapped Application Profile. These shapes act as templates that the RDF graph must conform to, covering aspects such as data types, relationships, and cardinality. A SHACL validation engine processes the RDF data against these shapes, identifying any violations that indicate non-conformity with the expected data model.

SHACL is a suitable choice to ensure adherence to data standards and interoperability requirements. This form of validation is independent of the way in which data mappings are constructed, focussing instead on whether the generated data conforms to established semantic models. It provides a high-level assurance that data structures and content meet the specifications.

SPARQL-based validation is tightly linked to the mapping process itself, offering a granular, rule-by-rule validation that ensures each data transformation aligns with the expert-validated mappings. It is particularly effective in confirming the accuracy of complex mappings and ensuring that the implemented data transformations precisely reflect the intended semantic interpretations, thus providing a comprehensive check on the fidelity of the mapping process.

Inputs: Sample data transformed into RDF, Conceptual Mapping, Technical Mapping, SHACL data shapes.
Outputs: Validation reports.

Once the XSD-to-XSD (to CV), XSD-to-CV, and, optionally, the XML to CV have been completed and validated, they can be packaged for dissemination and deployment. In particular if Phase 3 is needed, disseminating a mapping package facilitates their controlled use for data transformation, ensures the ability to trace the evolution of mapping rules, and standardises the exchange of such rules. This structured approach allows for efficient and reliable data transformation processes across different systems.

A comprehensive mapping package typically includes:

Such a package is designed to be self-contained, ensuring that it can be immediately integrated and operational within various deployment scenarios, supporting not only the application, but also the governance of the mappings, ensuring they are maintained and utilised correctly in diverse IT environments. This systematic packaging addresses critical needs for usability, maintainability, and standardisation, which are essential for widespread adoption and operational success in data transformation initiatives.

Inputs: Conceptual Mapping spreadsheet, Ontologies or Vocabularies, SHACL Data Shapes, Sample XML data, Sample data transformed into RDF, Conceptual Mapping, Technical Mapping, SHACL data shapes, Validation reports.
Outputs: Comprehensive Mapping Package.

First, you will familiarise yourself with the selected XSD schema and then prepare the test data.

Understanding the XML schema

The CBV XSD file defines several key entities for the domain, including:

Here’s how the snippet of the XSD schema looks like for the AccountingDocument:

Preparing the Test Data

Since we will also map data and proceed through Steps 3.1-3.3 further below, it is essential to prepare representative test data in this Phase 1. This data should align with the structure defined in the XSD schema and cover various use cases and scenarios that might occur in production data. For this tutorial, we will use the SampleData_Business.xml file available on the SEMIC GitHub repository.
We ensure that the XML data contains relevant elements, such as <LegalEntity>, <LegalName>, <ContactPoint>, and <RegisteredAddress>, which you will later map to the CBV terms. Among other content, it has the following data for <LegalName>:

Mapping XSD elements to CV Terms

In this step, we map each XSD element/type to Class or Property. These mappings often follow patterns like:

Use the sawsdl:modelReference attribute to capture this mapping.

Example Mapping Rules

Here’s how to describe mapping rules from XSD to TTL in XSD. For example:

This maps the XML element <LegalName> to the property legal:legalName.

Mapping Table (Partial)

Create a Conceptual Mapping

We will create a conceptual mapping between the XSD elements and RDF terms from the CBV. This will guide the transformation of the XML data to RDF. There are two levels of conceptual mapping:

Conceptually, we thus map between the same things across the files, as illustrated in the following figure, which links the XSD element ContactPoint (highlighted with a green oval) to the cv:ContactPoint that, in turn, makes the contact point of the data (that adheres to the XSD schema specification) an instance of that contact point:

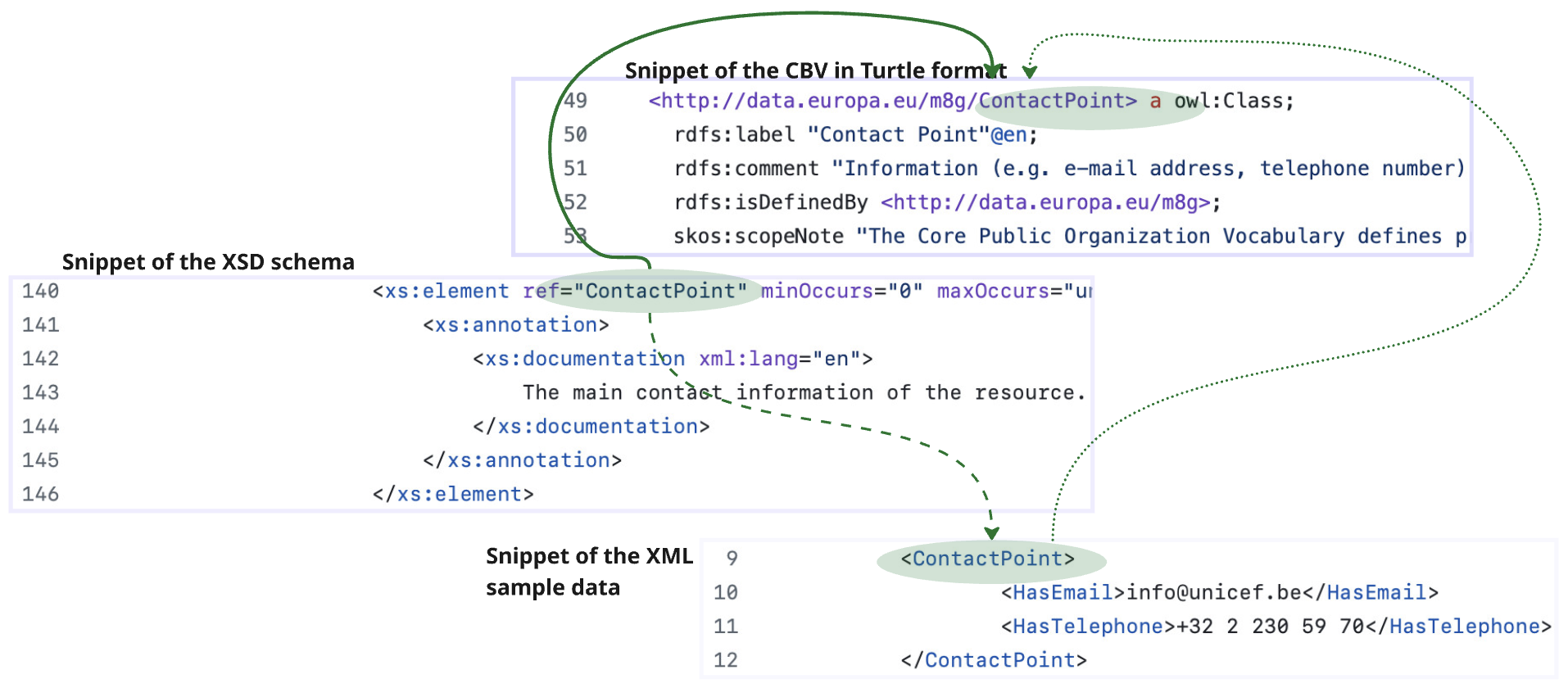

More precisely, you have to write down the source XPath, i.e., */ContactPoint in the figure, and how it is represented in the target specification, defining a target property path and a target class path. Examples of the Conceptual Mapping for five selected elements of the XSD schema are presented below, where the full URIs have been abbreviated:

Create the Technical Mapping

The RDF Mapping Language (RML) is suitable for the task of implementing the XML-to-RDF conceptual mappings as technical mappings. We will use RML to create machine-executable mapping rules as follows. First, the rml:logicalSource is declared, with the root of the tree in the XML file, which is */LegalEntity in our use case that assumes there to be an rml:source called SampleData_Business.xml with instance data. Next, a rr:subjectMap is added to state how each <LegalEntity> node becomes the RDF subject—here we build an IRI from generate-id(.) and type it as legal:LegalEntity. Finally, one or more rr:predicateObjectMap blocks capture the properties we need; in the simplest case we map the child element <LegalName> to the vocabulary property legal:legalName. The complete example RML mapping code looks as follows, in Turtle syntax:

This needs to be carried out for all elements from the XML files that were selected for mapping in Phase 1.

Validate the RDF Output

Now that we have created the mappings, we can apply them to sample data using RMLMapper or a similar tool selected from the SEMIC Tooling Assistant. For this tutorial, we will use RMLMapper, which will read the RML mapping file and the input XML data, and then generate the corresponding RDF output.

The snippet below is a single triple set produced when the mapping is run over the sample file SampleData_Business.xml (see Phase 1). It shows that one of the XML <LegalEntity> records—the Belgian committee for UNICEF—has been converted into an RDF resource of type legal:LegalEntity with its legal:legalName correctly populated.

We will validate the output in two ways: to check that the content transformed from XML into RDF exists in the graph and to check that it exists as intended also regarding any constraints on the shape of the graph.

First, we validate the generated RDF using SPARQL queries to ensure that the transformation adheres to the defined conceptual mapping. Since we want to validate rather than retrieve information, we use SPARQL ASK queries, which will return either a ‘yes’ or a ‘no’. For our running example, the SPARQL query for validating the LegalEntity is:

SHACL validation can be applied to ensure that the RDF data conforms to the required shapes and structures regarding any constraints that must hold.

To create a SHACL shape for the given RDF output, where the LegalEntity (legal:LegalEntity) has a legalName property, we need to define a SHACL shape that validates the type of the LegalEntity, the presence of the legalName property, and its datatype.

An example SHACL shape for validating LegalEntity is:

In this code snippet, observe:

Once the mappings are validated, the next step is to disseminate the project with the mappings as a package of documentation together with the artefacts. The package includes:
